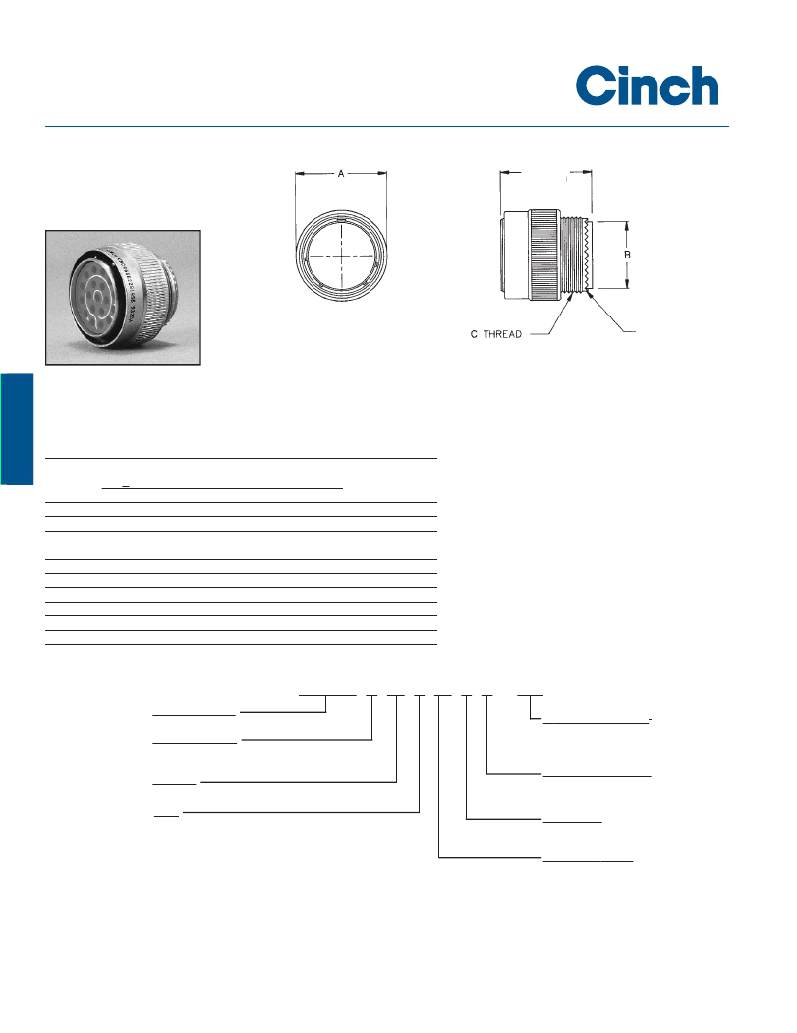

CN0966 Series (C48 Family)
Self-Locking Plug Connectors
Threaded Coupling
CN0966XXXXXXXX
1.345**
(34.164)
Max.
BACC63BP 1
360° LOCKING
ACCESSORY
TEETH
3
Dimensions
A
B
C
Shell
Size
8
10
12
14
16
18
20
22
24
28
+ .005 (.127)
in mm
.835 21.209
.972 23.698
1.165 27.254
1.230 30.124
1.355 33.198
1.470 34.798
1.607 38.100
1.735 41.148
1.858 44.069
2.113 52.070
Max. Dia.
in mm
.306 7.773
.371 9.423
.547 13.894
.613 15.570
.758 19.253
.865 21.971
.986 25.044
1.106 28.092
1.235 31.369
1.485 37.719
Thread
UNEF-2A
.500-20
.625-24
.750-20
.875-20
1.000-20
1.0625-18
1.1875-18
1.3125-18
1.4375-18
1.750-18*
Ordering Information 2
Series Designation
CN0966
Series Modification
A - Ungrounded
B - Grounded (Conductive)
CN0966 B 10 S 05 P N - 000
Order Code (Deviations) 1
000 - Less Contacts
100 - * See below
200 - With Gold-Plated Contacts
Notes:
Shell Size
8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28
Class
A - Anodized Aluminum
G - Cadmium/Nickel-Plated Aluminum
K - Stainless Steel Flame Resistant
N - Electroless Nickel-Plated Aluminum
S - Stainless Steel
Alternate Shell Positions
N, 6, 7, 8, 9, 10
Per table on page 3-4
Contact Style
P - Pin Insert
S - Socket Insert
Inser t Arrangements
(See page 3-4)
1
2
For Boeing Specification, see page 3-14.
For modifications, classes, etc. not listed, consult factory.
* Th’d: UNS-2A
** Size 28 = 1.395 (35.434)
* Former order code - 100 designated rhodium plated contacts
Call Toll Free: 1 (800) 323-9612
3-15
